[Skimmertalk] QS1R regulator mod. by 3B8CW

[N4ZR]

Very clever, Clive! Did you also replace the regulator IC, or had it not
yet failed entirely?  I'm thinking there may be some others out there in
the same boat.  If dropping the input voltage could resuscitate a few
U6s, we might get some of the guys back on.

And BTW, thanks for providing RBN support in a very under-served part of
the world.

73, Pete N4ZR
Check out the Reverse Beacon Network
at <http://reversebeacon.net>, now
spotting RTTY activity worldwide.
For spots, please use your favorite
"retail" DX cluster.

On 10/31/2018 6:12 PM, Bob Wilson, N6TV wrote:
> For those who may be interested, I've uploaded the high res. photo of
> 3B8CW's QS1R regular mod here:
>
> https://www.kkn.net/~n6tv/3B8CW_QS1R_Regulator_mod.jpg
>
> Details below.
>
> 73,
> Bob, N6TV
>
> Forwarded Conversation
> Subject: QS1R
> ------------------------
> From: Clive Woodlock
> Date: Wed, Oct 31, 2018 at 1:12 AM
> To: <n6tv at arrl.net>
>
> (snip)
>
> As you will be aware, it is well known that the QS1R, although a trusty
> workhorse for many years, suffers from overheating and failure of the
> voltage regulators - in particular U6 (I think it is).  This happened to
> the QS1R that I have here running the Indian Ocean CW Skimmer, but I have
> been able to repair it and bring the receiver back into service with a
> relatively simple mod.
>
> Perhaps you can pass the relevant information about this modification on,
> via the reflector, for anyone else who might be interested to perhaps
> attempt to rejuvenate a "dead" QS1R.
>
> Various solutions have been proposed over time to help minimise the
> overheating problems of the QS1R, including drilling holes in the case and
> bolting on a fan.
>
> However, the fundamental problem causing most of the failures appears to
> centre around the voltage regulator U6.  The load, and thus heat
> dissipation, of this regulator can be significantly reduced by running a
> couple of high current diodes in series with the +5V supply voltage (this
> is to drop the voltage to a more manageable level). In my case the diodes
> are mounted on a small heat sink of their own to further help dissipate
> heat. The small diode heat sink is then attached to the inside wall the
> QS1R case - which in itself is also a heat sink.
>
> To save drilling holes in the case - and potentially allow bugs to crawl
> inside (a perennial problem for those of us living in the tropics!) -
> external cooling is provide using a low speed Thermaltake laptop cooler,
> which has a 120mm slow moving fan.  This does a nice job of keeping the CW
> Skimmer installation, comprising the QS1R and an associate LNA, at a
> comfortable temperature.
>

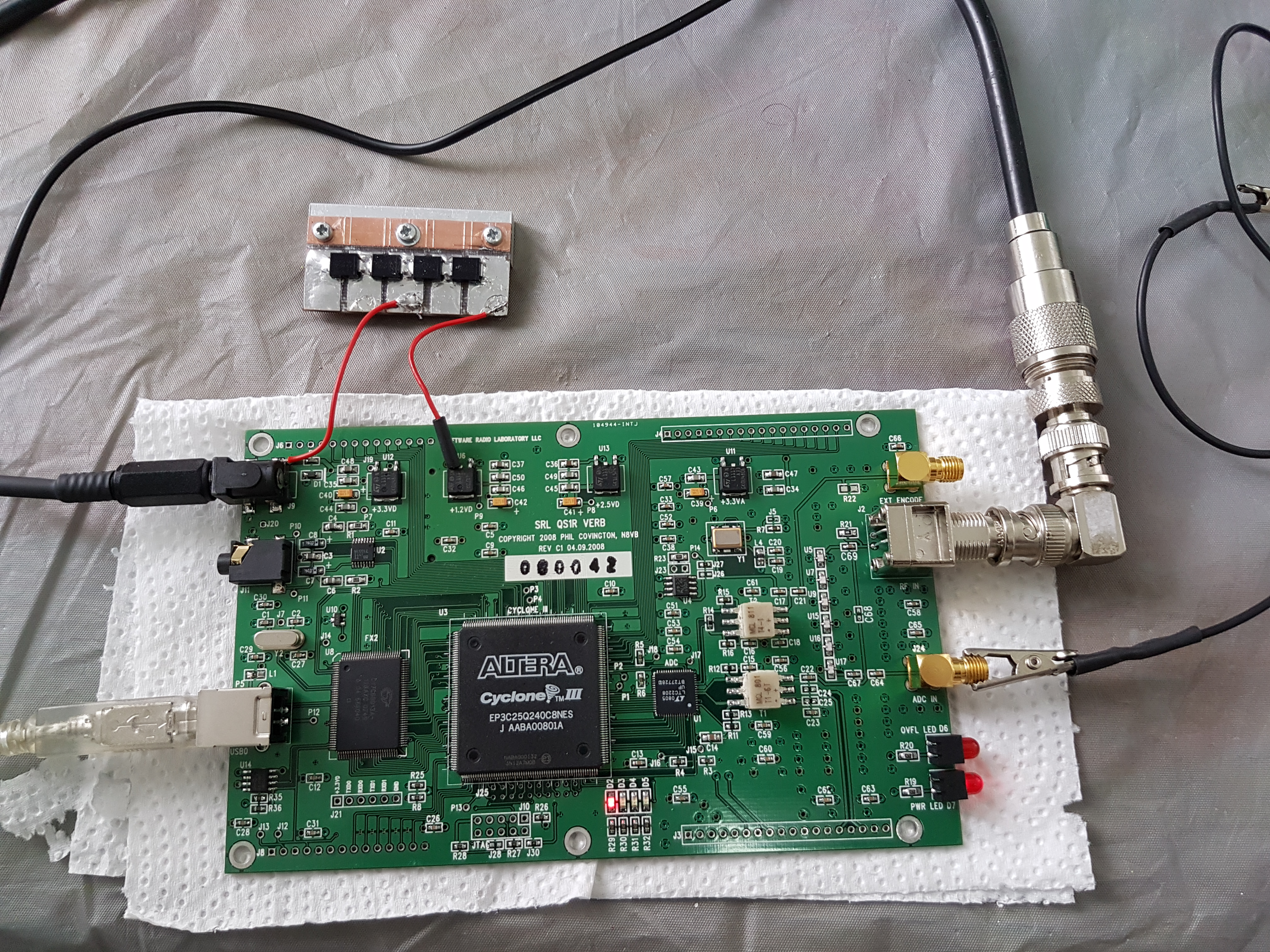

> See the attached photo which illustrates the regulator mod. (Note - the
> diode block actually has 4 diodes, but only 2 are used).
>
> If you need any further details, then please let me know.
>
> BR & 73,
>
> Clive
> ----------
> From: Bob Wilson, N6TV <n6tv at arrl.net>
> Date: Wed, Oct 31, 2018 at 1:20 AM
> To: Clive Woodlock
>
> Very nice work Clive.
>
> I assume you also had to cut a trace somewhere.  But maybe all you had to
> do was lift one surface mount lead of its pad?
>
> 73,
> Bob, N6TV
> ----------
> From: Clive Woodlock
> Date: Wed, Oct 31, 2018 at 1:40 AM
> To: Bob Wilson, N6TV <n6tv at arrl.net>
>
> Bob,
>
> Yes, you just need to cut the trace of the normal 5v line and in my case
> also replace the damaged U6 regulator.
>
> The diode block was actually put together by Paul G8AFC (3B8HE when he is
> here), who also kindly build the LNA in his Manchester workshop over in UK.
>
> 73,
> Clive
