It actually works very well. I use Collins 208U-10 plate/screen transformers
which look very similar to your images, to boost my single phase 240 VAC 60
Hz up to 5200 VAC for transmission from my solar plant to my ranch house,
and another run to my shack. The ranch house is about 1/3 mile from the
solar plant, and the shack about 800 feet from the solar plant. These
Collins transformers are really high quality with ratings from 49 Hz through
440 Hz. I see only a 40 Watt loss in each transformer due to I^2R and
magnetic effects. One thing to be sure of is to short-out all the windings
on the unused leg to prevent the magnetic flux from taking that easy path
around the loop. I wouldn't depend on the shorted turn alone to redirect the
flux.
73,
-Doug Ronald
W6DSR
-----Original Message-----
From: Amps [mailto:amps-bounces@contesting.com] On Behalf Of Chris Wilson
Sent: Thursday, October 27, 2016 05:53 AM
To: AMPS
Subject: [Amps] 3 phase HV transformers on single phase
27/10/2016 13:47
How inefficient would running a 3 phase, three bobbin transformer (7kV @ £
Amps on 3 phase) as a single phase using two bobbins? I have been offered a
transformer for scrap value with a shorted turn on the secondary of an outer
bobbin. I envisage putting the two working bobbins in series. We have 240V

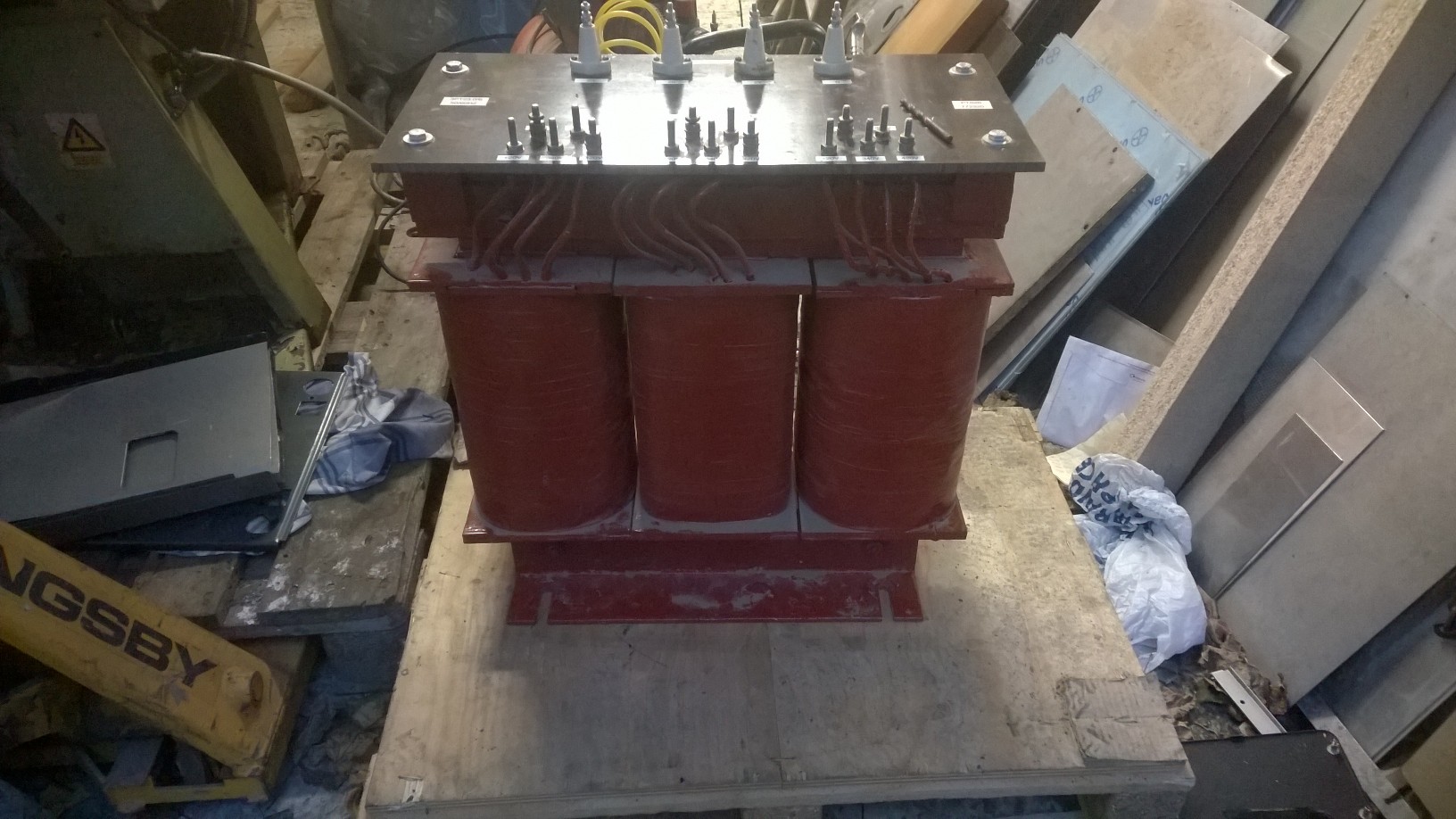

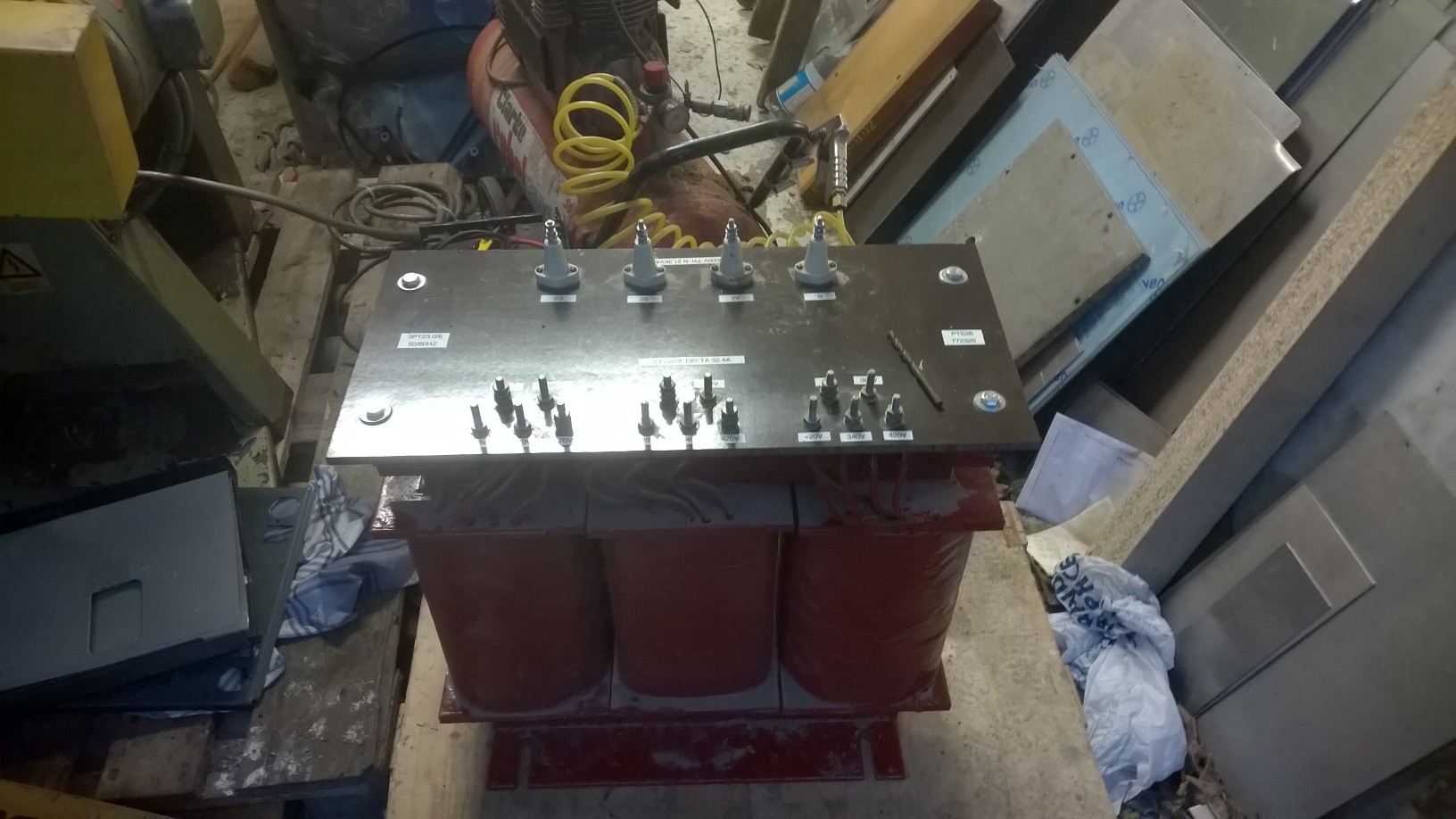

single phase mains into most domestic premises here in the UK. Photos of the
beast at:
http://www.gatesgarth.com/t1.jpg and
http://www.gatesgarth.com/t2.jpg
Thanks.
--
Best Regards,
Chris Wilson.
