This is what I use:
https://www.northerntool.com/images/product/2000x2000/189/189775_2000x2000.jpg
https://www.norelem.com/xs_db/BILD_DB/2/www/750/24210.jpg
It's called a pillow block. 2" for your mast or whatever size you need.

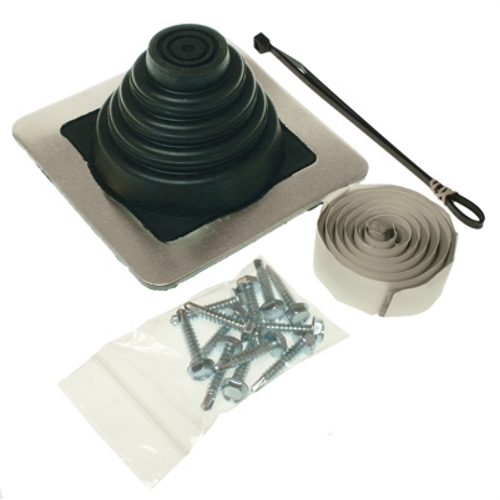

Then I take the rubber from one of thes:
https://www.ideadigitalcontent.com/files/11237/PIC_RJK.jpg
And put above the bearing to keep water out. It's called a roof jack.
73
Jim W7RY
-----Original Message-----
From: TowerTalk [mailto:towertalk-bounces@contesting.com] On Behalf Of
knowkode@verizon.net
Sent: Saturday, October 6, 2018 10:57 AM
To: towertalk@contesting.com
Subject: [TowerTalk] thrust bearings
Greetings All,
I have used Rohn TB3 thrust bearings in the past without issue but I have seen
my fair share of worn out bearings due mainly to an antenna being parked in
one direction for a long time- pitted races were the result. I've no experience
with anything else and that brings me to my question. Is there something better
out there? DXE claims an improvement over the Rohn bearing but it looks as all
they did was add a lower seal. I'm leery of Yaesu if the bearings are made from
the same pot metal as their rotor mast clamps. Bearing recommendations for an
installation with a 2" mast with about 8' above the bearing and 2' below and
an antenna along the lines of JK's C3S antenna are sought.
Tnx es 73,JimW5QM
